IMPLANTS

titanium


SICace
(Hex only)


SICmax
SICvantage max


SICtapered
SICvantage   tapered


ceramic

SICwhite

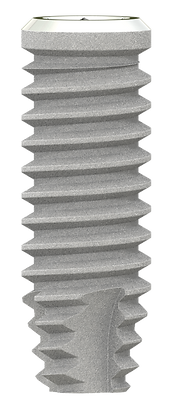

SICace - Titanimplantat

SICace



The allround implant with outstanding long-term clinical results



  • Self-tapping screw design for all indications in oral implantology.

  • SIC drill system for an atraumatic preparation of the implant site.

  • Basic cylindrical shape with apical conical taper for easy insertion of the implant.

  • High precision internal Hex with long guide surfaces for maximum stability of the implant-abutment connection and a innovative screw interface highly protected against overloading.

  • Flexible and precise prosthetic components for all indications.

  • Use of the SICace® implant can be recommended unreservedly in bone of D1 to D3 quality.

037_SIC_Implants_web_rgb_platform_ace.pn

Integrated “platform switch” for convenient prosthetic handling


6.0 mm Short Implants available

“Short Implants as strategic implants in the lower jaw” Norbert Enkling, Associate Professor, Berne


SICvantage max - Titanimplanat

SICmax



The solution in soft bone



  • Implant specially designed for use in “soft bone”. It is therefore to be used preferably for bone qualities D2 to D4.

  • Basic cylindrical shape of the implant with crestal micro thread guarantees great primary stability. As a result, the implant is also suitable for immediate implantation.

  • Greatly rounded implant tip without a direct thread cut for use in the upper posterior region, especially with all forms of sinus lift.

  • Integrated “platform switching” for convenient prosthetic handling.

  • Internal precision hexagon with long parallel-walled guide surfaces for maximum stability of the implant-abutment interface and a screw connection protected against continuous loading.


6.0 mm Short Implants available



“Short Implants as strategic implants in the lower jaw” Norbert Enkling, Associate Professor, Berne

SICvantage max

SICvantage max and SICvantage tapered implants are setting a new safety standard, starting with a super narrow implant abutment connection.



SICvantage max offers the same design features as SICmax.



  • Self-locking inner “Morse taper” connection with a cone angle of 2.8°.

  • SICvantage® “Swiss Cross”: 4 groove index

  • Outstanding mechanical stability

  • Prosthetic restoration possible with and without a fixation screw.

SICvantage max - Titanimplantat


SICvantage® ist ein eingetragenes Dentalimplanat mit europäischem Patent - EP 2829250.


SICtapered I SICvantage tapered - Titanimplantat

SICtapered

SICvantage tapered



Higher primary stability in most bone types



  • Overcomes compromised anatomical situations such as narrow ridges, converging root tips and anatomical undercuts

  • Ideal for immediate placement with temporary restoration

  • Sharper threads – for safe cutting of hard bone and reduction of bone compression

  • Slightly more tapered core in the middle of the implant – for adjusting the bone compression according to the drilling protocol

  • Improved flute design – for better cutting performance

  • More tapered core and threads in the apical partition – for deeper initial insertion


With Internal Hex and Conical Interface Available

From ø 3.0 mm for SICvantage tapered

SICvantage® is a registered dental implant with European patent - EP 2829250.


SICwhite - Keramikimplantat

SICwhite



The ceramic implant



  • Carbon-ceramic technology: High stability and reliable connection between implant and abutment.

  • Key component of this technology: Vicarbo screw made of carbon fibre-reinforced high-performance PEEK.

  • Ideal connection: The specially designed internal geometry is a perfect match for the properties of the ceramic material.

  • 70% higher strength: ATZ ceramic has a higher strength than TZP.

  • Committed to quality: Each implant is inspected with Micro-CT imaging before delivery.
